New World Development Company

Company Overview
Data Overview
Parameters for CDI API
Data dictionaries
Other information

Company Overview

Our company offers solutions related to supply chain financing for the construction industry leveraging permissioned blockchain technology.

Business Development Contact point:
Contact Name: Amy Wu (Assistant Manager – Technology Innovation)
Department: Technology
Contact No.: +852 3589 6143 / +852 9104 6963
Business Email Address: amywu@eurekanova.com

Technology Delivery Contact point:
Contact Name: Jacky Chan (Technical Project Manager)
Department: Technology Delivery
Contact No.: +852 59112359/ +852 98329102
Business Email Address: jackychantc@K11.com

Support Contact URL: www.riverchain.com

Data Overview

River Chain CDI integration module provides a data set of River Chain Supplier(s)’ current financing request data for data consumers (e.g. liquidity provider) to analyse, create loan offer packages, and further business development. The data set includes supply chain and construction-related data verified by the buyer of the tier above together with financing data in JSON format. The current data flow is accomplished by our CDI API – List Financing Request by Data Owner’s BR Number.

Workflow

The above sequence diagram demonstrates an end-to-end flow triggered by a data consumer in order to get the financing request of a data owner. In the data consent flow, the data consumer needs to submit pre-agreed parameters (refer to Data dictionaries) to River Chain via HKMA CDI. River Chain will process and return the data set based on the data owner River Chain supplier internal mapping.

Provided by
RIVER SQUARE COMPANY LIMITED (Part of New World Development)
Official website: www.riverchain.com

Fulfilment Method
Channel: HKMA CDI
Network communication protocol: Restful API (JWT Token)

Parameters for CDI API

Given that the CDI API specification defines a standardised data model for consent and data request flow, the tables below specify additional requirements for some data fields. Thus, the following section shall be read in conjunction with the CDI API specification (to be provided by the HKMA separately).

/api/dataOwner/create

Field	Additional requirements	Example
dataOwnerName	Required for River Chain	DATAOWNER01
br	Required for River Chain	HKG:09090901

/api/consent/SubmitConsentInfo

In the API request body:

Field	Additional requirements	Example
dataProviderId	Fill in “DATAPROVIDER01DP” Data consumer can call API /api/org/info in CDI to retrieve the whole list of data providers.	DATAPROVIDER01DP
Type	Fill in “ConsentTypeSignedDocNotRequired” to align with the current business process	ConsentTypeSignedDocNotRequired
expireTime	Fill in 0 as to align with current business process

/api/datarequest/submitDataRequestInfo

Field	Additional requirements	Example
udr	Fill in “{}” as to align with current business process	{}
scopeType	Fill in “DataScopeTypeUDR” as to align with current business process	DataScopeTypeUDR
documentType	Fill in “getFinancingRequest” as to align with current business process	getFinancingRequest

/api/dataRequest/RetrieveDataAccessInfoAll/{dataRequestId}

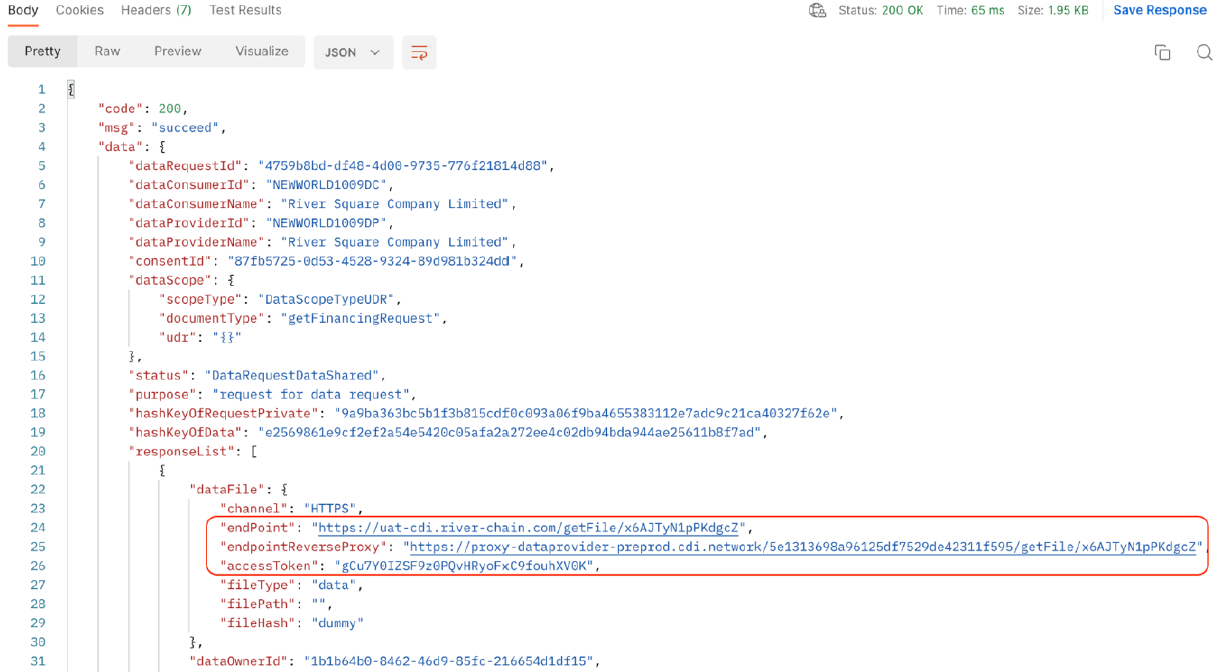

example Response:

Access data set from endpoint or endpointRevereProxy returned from
/api/dataRequest/RetrieveDataAccessInfoAll/{dataRequestId} response:

To access the data set, please make a GET request using the URL in either “endPoint” or “endpointReverseProxy” and pass the value of “accessToken” as an API key through the “access-token” in the request header.

Field	Additional requirements	Example
accessToken	Returned in /api/dataRequest/RetrieveDataAccessInfoAll/{dataRequestId}	zxJn52cDmBOmpL64jazAzy0Ip5usg542

CURL Example


					curl --location --request GET 'https://proxy-dataprovider-preprod.cdi.network/5e1313698a96125df7529de42311f595/getFile/cwfjhmJcfF4UNpN' \
--header 'access-token: zxJn52cDmBOmpL64jazAzy0Ip5usg542'

Data set sample response:



{
    "project_id": "6fb63e3c-9367-48a8-bcf6-c93686eb9020",
    "project_name": "Testing Project 另一个项目",
    "project_key": "沒有重點",
    "buyer":
    {
    "buyer_id": "62e11064f5f5646c701a44e4",
    "buyer_name": "River chain buyer ltd",
    "address": "HK"
    },
    "supplier":
    {
    "supplier_id": "62e8d16fbaccbec90fcf236c",
    "supplier_name": "River chain supplier ltd",
    "address": "HK123"
    },
    "status": "supplier_action_required",
    "financing_amount": 100000,
    "financing_currency": "HKD",
    "applicant_name": "Name of Applicant",
    "contact_person": "Contact Person",
    "telephone_number": "+44 (0) 7708 181154",
    "preferences":
    [
    "invoice_financing",
    "purchase_order_financing"
    ],
    "invoice":
    {
    "invoice_number": "inv 123",
    "invoice_amount": 102048,
    "currency": "RMB",
    "issue_date": "2022-08-18T00:00:00.000",
    "due_date": "2022-08-27T00:00:00.000",
    "account_number": "account no abc 123",
    "contact_person_name": "invoice contact person",
    "telephone_number": "+86 12472 858392",
    "payment_method": "cash",
    "payment_method_others": "Others Input",
    "payment_instruction": "Payment instruction",
    "delivery_note_ref_number": "delivery note",
    "delivery_note_date": "2022-08-12T00:00:00.000",
    "loading_port": "loading port",
    "discharge_port": "discharge",
    "shipper_name": "shipper name",
    "shipping_company_name": "shipping company",
    "vessel_name": "vessel test"
    },
    "purchase_order":
    {
    "purchase_order_number": "PO Number",
    "purchase_order_amount": 200000,
    "currency": "HKD",
    "contact_person_name": "PO Contact Person",
    "telephone_number": "+852 6030 1100",
    "issued_date": "2022-08-01T00:00:00.000",
    "validity_date": "2022-08-03T00:00:00.000",
    "products":
    [
    {
    "type": "Product Type 1",
    "description": "Product Description 1",
    "quantity": 100,
    "quantity_unit": "Qty Unit 1",
    "unit_price": 10,
    "discount_percentage": 11,
    "net_amount": 12
    },
    {
    "type": "Product Type 2",
    "description": "Product Description 2",
    "quantity": 200,
    "quantity_unit": "Qty Unit 2",
    "unit_price": 20,
    "discount_percentage": 21,
    "net_amount": 22
    }
    ],
    "gross_amount": 1001,
    "discounted_amount": 100001,
    "total_net_amount": 1000001,
    "contract_number": "Contact No with -",
    "quotation_number": "Quotation No -",
    "payment_terms": "Payment Terms ",
    "prepared_by": "prepared by sugar",
    "delivery_date": "2022-08-24T00:00:00.000",
    "delivery_terms": "delivery terms",
    "delivery_address": "delivery address 123",
    "special_conditions": "special conditions",
    "reference": "reference",
    "supersede_purchase_order": "supersede PO"
    },
    "created_by": "",
    "updated_by": "",
    "created_at": "2022-08-23T06:41:20.444Z",
    "updated_at": "2022-08-23T06:42:17.685Z",
    "green_certifications":
    {
    "cic":
    {
    "product_names":
    [],
    "description": ""
    },
    "other":
    {
    "product_names":
    [],
    "description": ""
    }
    }
}

Data dictionaries and samples

For full example response, ref to API Specification

Field Name	Data Type	Description	Example
financing_requests	Array of objects	Array of financing request objects	Ref to API Specification
project_id	string	Project ID	“8f1ca9a2-e200-4f09-a215-845497647f5f”
project_id	string	Project ID	“8f1ca9a2-e200-4f09-a215-845497647f5f”
project_name	string	Project name	“Project B”
project_key	string	Project key, must be unique in view of a buyer	“PBM”
buyer	object	Object store buyer’s information	{ “buyer_id”: “63311f5f0c1dc524b9c190e1”, “buyer_name”: “Buyer”, “address”: “This is the address” }
buyer.buyer_id	string	Buyer ID	“63311f5f0c1dc524b9c190e1”
buyer.buyer_name	string	Buyer’s display name	“Buyer”
buyer.address	string	Buyer’s address	“This is address”
supplier	object	Object store supplier’s information	{ “supplier_id”: “639a7acc5dde383e53431e90”, “supplier_name”: “ABC Limited”, “address”: “This is address” },
supplier.supplier_name	string	Supplier’s display name	“ABC Limited”
supplier.address	string	Supplier’s address	“This is address”
status	string	For CDI, data will only show data in “pending offer” status	“pending_offer”
financing_amount	number	Amount that loan applicant want to apply for	1000000
financing_currency	string	Financing currency	“HKD”
applicant_name	string	Loan applicant name	“Lily Lu”
contact_person	string	Loan applicant contact point	“Lily Lu”
telephone_number	string	Loan applicant contact number	“98212012”
preferences	array of string	Array of string indicate loan product preference filled in by loan applicant, can be either “purchase_order_financing”/ “invoice_financing” or both	[“purchase_order_financing”]
invoice	object	Object store Invoice information, can be empty	Ref to API Specification
invoice.invoice_number	string	Identifier of invoice
nvoice.invoice_amount	number	Invoice amount
invoice.currency	string	Currency, e.g. HKD / RMD / USD
invoice.issue_date	string	Issue Date. The date of the invoice issued in corresponding region.
invoice.due_date	string	The due date of the invoice in corresponding region.
invoice.account_number	string	Account Number
invoice.contact_person_name	string	Name of Contact Person
invoice.telephone_number	string	Phone number
invoice.payment_method	string	Payment Method, e.g. cheque, e-payment, others
invoice.payment_method_others	string	Others payment method.
invoice.payment_instruction	string	Payment Instruction
invoice.delivery_note_ref_number	string	Delivery Note Reference Number
invoice.delivery_note_date	string	Delivery Note Date. The date in corresponding region.
invoice.loading_port	string	Loading Port
invoice.discharge_port	string	Discharge Port
invoice.shipper_name	string	Shipper Name
invoice.shipping_company_name	string	Shipping Company Name
invoice.vessel_name	string	Vessel Name
purchase_order	object	Object store PO information, can be empty	Ref to API Specification
purchase_order.purchase_order_number	string	PO number	“000123456789”
purchase_order.purchase_order_amount	number	PO amount	100000
purchase_order.currency	string	PO currency	“HKD”
purchase_order.contact_person_name	string	PO contact person name	“Lily Lu”
purchase_order.telephone_number	string	PO contact number	“91283921”
purchase_order.issued_date	date and time	PO issue date	“2022-12-14T00:00:00.000”
purchase_order.validity_date	date and time	PO valid date	“2022-12-14T00:00:00.000”
purchase_order.products	array of objects	Array of objects store Invoice information, can be empty	[]
purchase_order.products[].type	string	Product Type.
purchase_order.products[].description	string	Product Description
purchase_order.products[].quantity	number	Product Quantity	100
purchase_order.products[].quantity_unit	string	Unit of product quantity	kg
purchase_order.products[].unit_price	number	Unit price of 1 Quantity Unit.
purchase_order.products[].discount_percentage	number	Discount Percentage.
purchase_order.products[].net_amount	number	Net amount of the product.
purchase_order.gross_amount	number	Gross amount.
purchase_order.discounted_amount	number	Discounted amount.
purchase_order.total_net_amount	number	Total Net Amount.
purchase_order.contract_number	string	PO contract number.	“0002356848”
purchase_order.quotation_number	string	PO quotation number	“dfw-5685d888”
created_by	date and time	FR created by	“63311f5f0c1dc524b9c190e3”
updated_by	date and time	FR last updated by	“63311f5f0c1dc524b9c190e3”
created_at	date and time	FR created at (UTC)	“2022-12-14T00:00:00.000”
created_at	date and time	FR created at (UTC)	“2022-12-14T00:00:00.000”
updated_at	date and time	FR last updated at (UTC)	“2022-12-14T00:00:00.000”
green_certifications	object	Object storing green certs information	{ “cic”: { “product_names”: [ “Green Cert” ], “description”: “This is a green cert” } }
green_certifications.cic / green_certifications.other	object	Object storing CIC green cert information, can be empty	“product_names”: [“Product name 1”], “description”: “This is a green cert” }
green_certifications.cic.product_names / green_certifications.other.product_names	array of string	Product names in string which are certified by green certs	[“Product name 1”]
green_certifications.cic.description / green_certifications.other.description	string	Green cert description	“This is a green cert”

Notes: 1. All number format fields are integral number or decimal number correct to 2 decimal places at most.

Other information

Error code mapping

Scenario	Network Error Code	Response Body
Exceed access limit (Current number of request limit: 1)	500	{ “message”: “Invalid access token”, “errorCode”: “SYS001” }
Invalid access token	500	{ “message”: “Exceed access limit”, “errorCode”: “SYS001” }
River Chain Related Error	400	{ “message”: “”, “errorCode”: “CDI001” }
Unexpected Error	500	{ “message”: “Something went wrong. Please try again later” }

Token management
o Type: JWT
o Expiry time: 60 min

CDI Member Portal
